• CompactGSftg

Construction

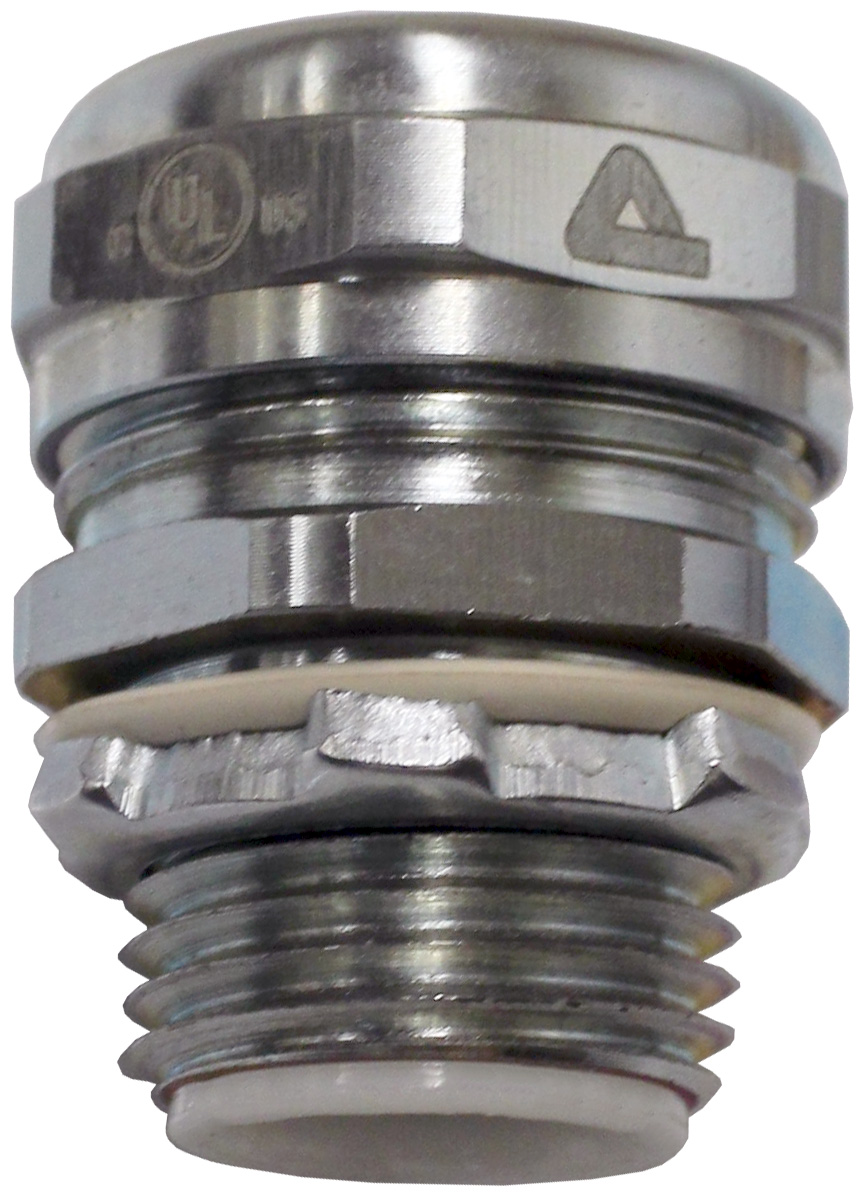

  • Compact zinc-plated steel fitting, has a seven piece construction consisting of a gland nut, sealing ring, high tensile grounding ferrule, insulated throat, body, seal and lock nut.
  • IP 66/67 rated when installed with approved conduit and tightened to UL-514B/CSA C22.2 18.3 torque specifications
  • Corrosion resistant, protecting from moisture and oil
  • Temperature range: -49ºF to +221ºF (-45ºC to +105ºC)
  • NOTE: Trade Size 3/8" fittings are for 1/2" Knockout holes in enclosures

Applications

  • Approved for both exposed and concealed locations
  • Fitting for liquid tight flexible metallic conduit (LFMC)
  • Meet NEMA FB-1 standard and UL 514B standard
  • Suitable for Hazardous Locations per NEC Articles
    • 501.10 (B) (2) Class I Div. 2
    • 502.10 (A) (2) and (B) (2) Class II Div.1 & 2
    • 503.10 (A) (3) and (B) Class III Div. 1 & 2

Certifications

cULus 514B Approved TEOZ.E472179 / RoHS WEEE COMPLIANT

1 - 21 de 21 | Resultados por página | View | Unidade de medida
1
Request Information Compare Items Search by Specification

Item #

Nomo do Item

Dimensão B

Dimensão C

Dimensão A

Tipo do Conector

Tipo

Tamanho comercial elétrica

Tipo de Fio

Dimension E

Core Material

Ingress Protection (IP) Rating

N/A 3/8” Compact Zinc-Plated Steel Straight Fitting N/A 0.472 in N/A 1.023 in N/A 1.259 in N/A Directo N/A Compact Zinc-Plated Steel Straight Fitting N/A 3/8 in N/A NPT N/A 0.944 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1/2” Compact Zinc-Plated Steel Straight Fitting N/A 0.472 in N/A 1.141 in N/A 1.388 in N/A Directo N/A Compact Zinc-Plated Steel Straight Fitting N/A 1/2 in N/A NPT N/A 1.063 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 3/4” Compact Zinc-Plated Steel Straight Fitting N/A 0.472 in N/A 1.378 in N/A 1.378 in N/A Directo N/A Compact Zinc-Plated Steel Straight Fitting N/A 3/4 in N/A NPT N/A 1.299 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1” Compact Zinc-Plated Steel Straight Fitting N/A 0.511 in N/A 1.771 in N/A 1.456 in N/A Directo N/A Compact Zinc-Plated Steel Straight Fitting N/A 1 in N/A NPT N/A 1.732 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1-1/4” Compact Zinc-Plated Steel Straight Fitting N/A 0.59 in N/A 2.086 in N/A 1.653 in N/A Directo N/A Compact Zinc-Plated Steel Straight Fitting N/A 1 1/4 in N/A NPT N/A 2.047 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1-1/2” Compact Zinc-Plated Steel Straight Fitting N/A 0.630 in N/A 2.44 in N/A 1.889 in N/A Directo N/A Compact Zinc-Plated Steel Straight Fitting N/A 1 1/2 in N/A NPT N/A 2.362 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 2” Compact Zinc-Plated Steel Straight Fitting N/A 0.748 in N/A 2.992 in N/A 2.126 in N/A Directo N/A Compact Zinc-Plated Steel Straight Fitting N/A 2 in N/A NPT N/A 2.834 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 3/8” Compact Zinc-Plated Steel 45-Degree Fitting N/A .0551 in N/A 1.114 in N/A 0.945 in N/A 45° N/A Compact Zinc-Plated Steel 45° Fitting N/A 3/8 in N/A NPT N/A 0.944 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1/2” Compact Zinc-Plated Steel 45-Degree Fitting N/A .0551 in N/A 1.244 in N/A 0.984 in N/A 45° N/A Compact Zinc-Plated Steel 45° Fitting N/A 1/2 in N/A NPT N/A 1.063 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 3/4” Compact Zinc-Plated Steel 45-Degree Fitting N/A .0551 in N/A 1.504 in N/A 1.063 in N/A 45° N/A Compact Zinc-Plated Steel 45° Fitting N/A 3/4 in N/A NPT N/A 1.299 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1” Compact Zinc-Plated Steel 45-Degree Fitting N/A 0.630 in N/A 1.949 in N/A 1.260 in N/A 45° N/A Compact Zinc-Plated Steel 45° Fitting N/A 1 in N/A NPT N/A 1.653 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1-1/4” Compact Zinc-Plated Steel 45-Degree Fitting N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
N/A 1-1/2” Compact Zinc-Plated Steel 45-Degree Fitting N/A 0.630 in N/A 2.086 in N/A 1.417 in N/A 45° N/A Compact Zinc-Plated Steel 45° Fitting N/A 1 1/4 in N/A NPT N/A 2.047 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 2” Compact Zinc-Plated Steel 45-Degree Fitting N/A 0.787 in N/A 2.992 in N/A 1.732 in N/A 45° N/A Compact Zinc-Plated Steel 45° Fitting N/A 2 in N/A NPT N/A 2.834 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 3/8” Compact Zinc-Plated Steel 90-Degree Fitting N/A 0.472 in N/A 1.023 in N/A 1.063 in N/A 90° N/A Compact Zinc-Plated Steel 90° Fitting N/A 3/8 in N/A NPT N/A 0.944 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1/2” Compact Zinc-Plated Steel 90-Degree Fitting N/A 0.472 in N/A 1.141 in N/A 1.181 in N/A 90° N/A Compact Zinc-Plated Steel 90° Fitting N/A 1/2 in N/A NPT N/A 1.063 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 3/4” Compact Zinc-Plated Steel 90-Degree Fitting N/A 0.472 in N/A 1.378 in N/A 1.338 in N/A 90° N/A Compact Zinc-Plated Steel 90° Fitting N/A 3/4 in N/A NPT N/A 1.299 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1” Compact Zinc-Plated Steel 90-Degree Fitting N/A 0.511 in N/A 1.771 in N/A 1.614 in N/A 90° N/A Compact Zinc-Plated Steel 90° Fitting N/A 1 in N/A NPT N/A 1.653 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1-1/4” Compact Zinc-Plated Steel 90-Degree Fitting N/A 0.511 in N/A 2.086 in N/A 1.811 in N/A 90° N/A Compact Zinc-Plated Steel 90° Fitting N/A 1 1/4 in N/A NPT N/A 2.047 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 1-1/2” Compact Zinc-Plated Steel 90-Degree Fitting N/A 0.511 in N/A 2.441 in N/A 2.204 in N/A 90° N/A Compact Zinc-Plated Steel 90° Fitting N/A 1 1/2 in N/A NPT N/A 2.362 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
N/A 2” Compact Zinc-Plated Steel 90-Degree Fitting N/A .0630 in N/A 2.992 in N/A 2.0441 in N/A 90° N/A Compact Zinc-Plated Steel 90° Fitting N/A 2 in N/A NPT N/A 2.834 in N/A Galvanized Steel N/A Ingress Protection (IP) 66/67
